High Quality Waterproof PVC Tarpaulin for Tent and Cover
PVC Tarpaulin, Tarpaulin, Tarpaulin Covers
Description
Basic Info
- Model NO.: UND-TL005
- Applications: Tent,Truck Cover,Bag,Watetank Etcr
- Style: PVC Coated
- Width: 1-3.2m
- Structure: Three-Dimensional Form
- Trademark: UNEED
- Specification: pvc and polyester
- HS Code: 5903109000
- Material: PVC+Polyester
- Type: Tarpaulin
- Pattern: Gossly ,Matte and Imprint
- Gram Weight: 300g-1200g
- Fr: M1/M2/Nfpa701
- Transport Package: Craft Paper or Hard Tube Paper
- Origin: Zhejiang, China (Mainland)
Product Description
UNEEDsports products are many fabric widths, colors and textures (rice straw, pyramid or Rhombennarbung etc.) available.
CNUNEED's fabrics offer the following advantages:
High tear strength
Outstanding UV Resistance
Excellent puncture resistance
Low thermal expansion/contraction
Print large advertisements
Fabrics are available in matte finish in a variety of standard colors, and custom colors are an option depending on volume. Acrylic and PVDF top finishes are also available to increase clean ability.

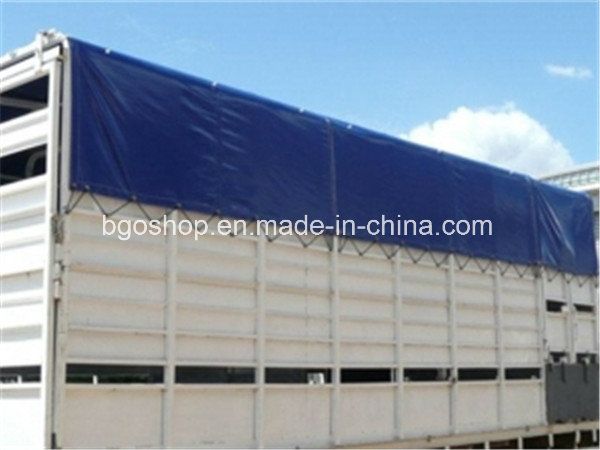

Application:Tent,Truk Cover,Bags,Tent,Water Tank etc
|
Base fabric Item |
250*250D 22*19 |
300*500D 18*12 |
500*500D 9*9 |
500*500D 18*17 |
1000*1000D 9*9 |
1000*1000D 12*12 |
Test method | |
| Weight(GSM/M2) | 340-500 | 380-500 | 380-550 | 440-600 | 400-600 | 500-700 | DIN53352 | |
| Tensile strength (N/5CM) |
L | 1000 | 550 | 750 | 1400 | 1400 | 2000 | DIN53354 |
| W | 900 | 450 | 740 | 1300 | 1200 | 1600 | ||
| Tearing strength (N/5CM) |
L | 150 | 160 | 150 | 300 | 210 | 400 | DIN53363 |
| W | 130 | 140 | 120 | 320 | 200 | 300 | ||
| Adhesion(N) | 40 | 40 | 50 | 50 | 80 | 80 | DIN53357 | |
| Light Fastness (except white) |
6-7 | |||||||
| Environmental(Optional) | REACH,ROHS,EN71-3 ASTM-F963 | |||||||
| FR Certification (Optional) |
B1,B2,M1,M2,NFPA-701,DIN75200 | |||||||
| Temperature resistance | -30-+70ºC | |||||||
| Width(M) | UP TO 5.1M | |||||||
| All our technical characteristics are indicative | ||||||||
Machine
|
Base Fabric Items |
500*500D 18*21WP |
1000*1000D 18*18WP |
1000*1000D 20*20 |
1000*1000D 22*22 |
1000*1000D 23*23 |
1000*1000D 30*30 |
Test Method | |
| Weight(GSM/M2) | 500 | 610 | 630 | 700 | 800 | 900 | DIN53352 | |
| Tensile strength (N/5CM) |
L | 1400 | 2400 | 2500 | 2600 | 2800 | 4000 | DIN53354 |
| W | 1300 | 2100 | 2200 | 2400 | 2700 | 3500 | ||
| Tearing strength (N/5CM) |
L | 190 | 3800 | 230 | 280 | 300 | 520 | DIN53363 |
| W | 180 | 300 | 210 | 260 | 290 | 450 | ||
| Adhesion(N) | 70 | 80 | 100 | 100 | 100 | 100 | DIN53357 | |
| Light Fastness (except white) |
6-7 | |||||||
| Enviromental(Optional) | REACH,ROHS,EN71,ASTM-F963 | |||||||
| FR Certification (Optional) |
B1,B2,M1,M2,NFPA-701,DIN75200 | |||||||
| Lacquering(Optional) | 3555(Acrylic),3483(Acrylic),7584(PVDF),ASTM D1230 | |||||||
| Temperature resistance | -30-+70ºC | |||||||
| Width(M) | 1.02-3.20M | |||||||
| All our technical characteristics are indicative | ||||||||
